ALL FLOORTYPE LOADING CARS FEATURE:
- Self contained hydraulic system with pendant controls
- 15' of travel by hydraulic motor
- Lift as specified by hydraulic cylinder
- Electric cable reel & starter supplied by customer
- Designed for off center loading
- Rails & foundation supplied by customer
Whether you need a standard coil processing line component, or a complete line, LM Equipment has the capability to design it, build it, deliver it on time, and get it operating efficiently within established budget parameters. Each component we develop becomes a pre-engineered, performance proven product to maximize your present processing facility, or for use in future lines. The technical staff at LM Equipment is ready to help you.
Specifications
MAX. CAPACITY WT. x O.D. |
MODEL NUMBER |
HY'D LIFT |
~ | RAIL SIZE |
|||||||

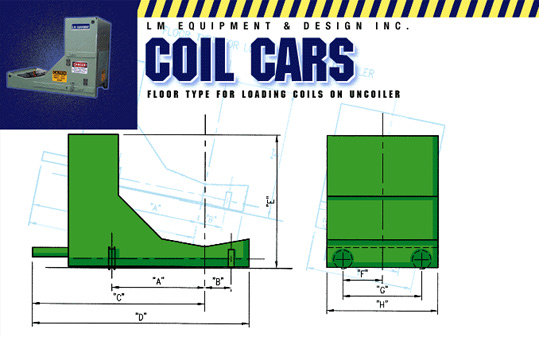

~ | ~ | ~ | "A" | "B" | "C" | "D" | "E" | "F" | "G" | "H" | ~ |
20,000 x 60" | CC - 2060 | 20" | 40" | 11.5" | 71" | 89" | 48" | 15" | 30" | 42" | 40# |
30,000 X 72" | CC - 3072 | 24" | 40.25" | 11.5" | 74.5" | 94" | 58" | 17" | 34" | 48" | 40# |
40,000 X 72" | CC - 4072 | 24" | 40.25" | 11.5" | 74.5" | 94" | 58" | 17" | 34" | 48" | 40# |
50,000 X 72" | CC - 5072 | 24" | 44.5" | 11.5" | 80.625" | 102.62" | 64" | 20" | 40" | 55.5" | 60# |
60,000 X 72" | CC- 6072 | 24" | 44.5" | 11.5" | 80.625" | 102.62" | 64" | 20" | 40" | 55.5" | 60# |
