ALL DRAG STYLE STANDS FEATURE:
- Heavy welded steel construction.
- Adjustment and pressure by hydraulic cylinders with remote pressure control.
- Cylinder equalization by either flow divider or rack and pinion.
- Pass line to suit customer.
- Separator arbor with tooling that slides out on rollers-operator's
side for changing.

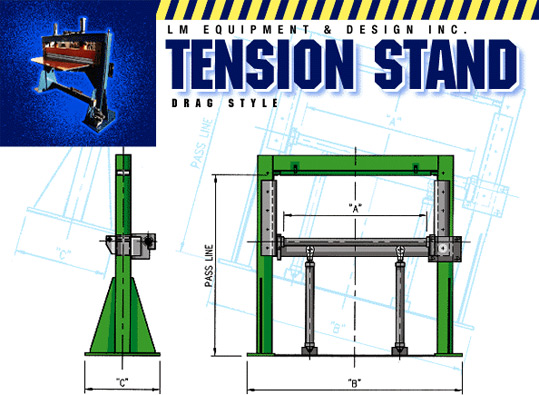

Specifications
CAPACITY WIDTH x THICK |
MODEL NUMBER |
~ | ||
~ | ~ | "A" | "B" | "C" |
48" x .187" | TD-4800 | 53" | 82" | 30" |
60" x .187" | TD-6000 | 65" | 97" | 32" |
72" x .187" | TD-7200 | 77" | 112" | 34" |
